Factory set
Prefabricated house factory set
A prefabricated timber frame house factory set includes floor, wall, ceiling and roof panels, assembly of the panels on site, installation of windows and exterior doors, roofing and facade finishing. Commissioning a prefabricated house service, the customer is able to relatively quickly obtain a manufactured and assembled building structure on site, where he can complete the rest of the internal finishing works and install the communications himself.
Factory set - fully finished and complete house from the outside with windows, outdoors, roofing and terraces.
Standard solution for our standard projects
*Factory set can be adjusted to fit each customer's needs and local building requirements.
1. Outside wall panel:
- Gypsum board 12.5mm (as loose material)
- Thermal insulation 50mm
- Laths 45x45mm
- Vapour barrier
- Thermal insulation 200mm
- Wooden frame 45x195mm
- Wind barrier 9mm
- Wind membrane
- Laths 28x45mm
- External cladding
2. Inner wall panel:
Load bearing inner wall:
- Gypsum board 12.5mm
- Wooden frame 45x145mm
- Thermal insulation 150mm
- Gypsum board 12.5mm (as loose material)
Inner wall
- Gypsum board 12.5mm
- Wooden frame 45x950mm
- Thermal insulation 100mm
- Gypsum board 12.5mm (as loose material)

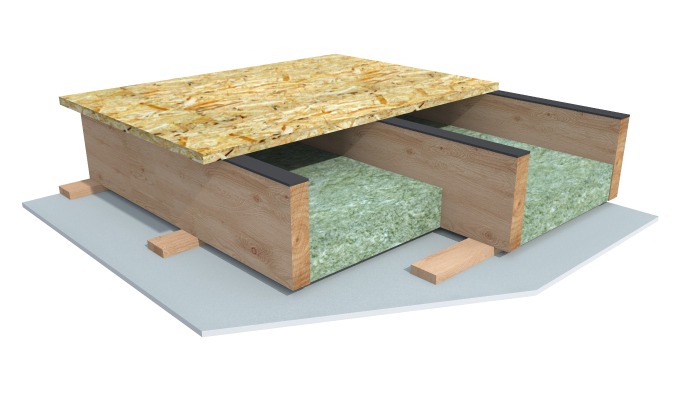

3. Pārseguma panelis:
- OSB board 22mm
- Absorbing tape
- Wooden frame 45x220mm
- Thermal insulation 100mm
- Laths 28x70mm
- Gypsum board 12.5mm (as loose material)

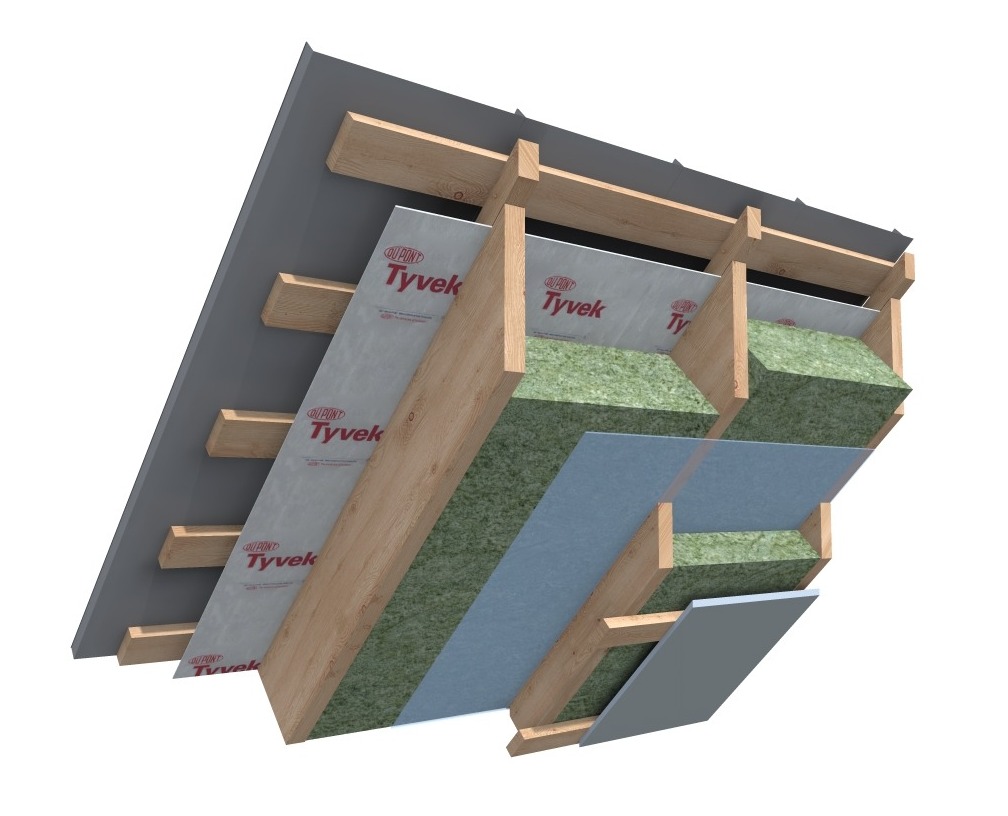

4. Jumta panelis:
- Roof covering (according to project)
- Laths 28x70mm (according to roof covering type)
- Laths 28x45mm
- Wind membrane
- Wooden frame 45x245mm
- Thermal insulation 250mm
- Vapour barrier
- Laths 45x45mm
- Thermal insulation 50mm
- Laths 28x70mm
- Gypsum board 12.5mm (as loose material)
5. Factory set include:
- Engineering (BK un KKD)
- Triple-glazed PVC windows
- Outdoors (PVC)
- Delivery
- Assembly
* The materials included in the prefabricated factory set can be adjusted to the needs and requirements of the customer.
